Redline

Overview

Redline collects selected changes across my projects in one register, newest first, with what was added, changed, fixed and removed. Each project page shows how many revisions are recorded and the dates they cover, with a link to the full commit history and an Atom feed. A small admin is where I write entries. It is built with Next.js, React, TailwindCSS and Motion, with the data in PostgreSQL on Neon.

The first version was Quillify, a blog with categories, an email box to subscribe and an admin panel to write posts. BlogSpace, now Inspect, is a blog too, and two was one too many, so the rebuild turned it into the place that keeps track of the rest. The notes here say what each project is; Redline says what changed and when.

Live: redline.ashwin.co.in
Source code: Explore Repo

Goals & Problems Solved

• One Place for Changes: Selected rebuilds, new features and fixes across my projects, dated and in order.
• Read It Your Way: All projects or one, and only the kind of change you care about.
• Follow Without an Account: An Atom feed for everything and one per project, no email list.
• Quick to Write: A draft from the project’s commits, so a release takes minutes to note down.
• Nothing Jumps: No layout shift on load or while you use it.

Architecture & Tech Stack

Layer	Technology / Library	Purpose
Framework	Next.js 16, React 19	Prerendered pages and feeds, the admin and its server actions
Style / Motion	TailwindCSS 4, Motion 13, View Transitions	The sheet, sheets and toasts, and morphs between pages
Data	PostgreSQL on Neon	Projects and releases, each release’s changes as JSONB
Auth	JWT with jose, bcryptjs	One admin login in a signed cookie
Drafts	GitHub API	Commits since the last release, turned into a draft
Notes	marked	Markdown notes on a release
Hosting	Vercel	Static pages rebuilt when a release is published

Key Features & UX Flow

1. The Register

   • Selected changes from each project, newest first. Each entry is a revision: a number in a graphite circle, a version, a date, a title and its changes.
   • The newest revision is circled in a red cloud that fades in when the page opens.

2. Show Only

   • Tap Added, Changed, Fixed or Removed to see only those changes, across everything or one project. The counts show how many of each there are.

3. Drawings and Revisions

   • Each project has a page with what it is, links to the live site, the code and its note here, plus its selected revisions and the dates they cover.
   • Each revision has its own page with its changes grouped, its notes and its commits, and older and newer links. J and K step through, Esc goes back up.

4. Follow

   • /feed.xml for everything and /<project>/feed.xml for one, with copy buttons for a feed reader.

5. The Admin

   • Sign in, pick a project and draft from GitHub: the commits since the last release, sorted by their feat and fix prefixes, with the next version suggested.
   • Rewrite them for people, watch the live preview of the row, and publish. The site updates straight away. Delete has undo.

Code Walkthrough & Notable Modules

• app/(site)/: the register, project pages, revision pages and their feeds.
• app/admin/: sign in, the list, the editor and projects, and actions.js with every write, each one checking the session.
• components/: • Frame.jsx, Rail.jsx, TitleBlock.jsx: the sheet with its zone numbers, project list and title block. • Revision.jsx: one row, used by the register and the admin preview. • Legend.jsx, MobileHead.jsx, Sheet.jsx: the filter, the phone header and the pull-up sheet.
• lib/: • data.js: reads projects and releases in two queries and numbers each project’s revisions. • feed.js: Atom. • session.js: the signed admin cookie.
• scripts/: the schema, the seed of selected revisions so far, and the admin login.

UI / Responsiveness & Design Decisions

• An Engineering Drawing: That’s where changes get marked. Drafting film with a pale blue grid, a frame with zone numbers, a drawing list, a register and a title block in the corner.
• Redlining: The newest change is circled in a red revision cloud. Its number stays graphite, like the other revisions.
• The Cloud in CSS: A scalloped SVG as a border image that fades in quickly. It fits any row without JavaScript or measuring its size.
• Typography: Atkinson Hyperlegible Next for names, labels and reading. Osifont marks the frame zones and revision numbers; Azeret Mono handles versions, dates and commits.
• No Dark Mode: Drawings are on film.
• Every Screen: The full sheet on desktop; on tablets the side folds into a strip; on phones the frame goes and the drawing list moves into a sheet.
• Nothing Jumps: Fonts are self-hosted with metric-matched fallbacks, and layout shift measures 0 on load and while you use it.

Challenges & Learnings

• Repurposing a blog into something that doesn’t overlap another project, while keeping its admin and login.
• Moving from MongoDB to PostgreSQL mid-rebuild: releases have fixed fields, and a free database that pauses after a month idle is a bad fit for a site that is only written to now and then.
• A cloud that follows any row without measuring it in JavaScript: border images need an SVG with a real width and height, or the slices land in the wrong place.
• React 19 resets a form after its action runs, which wiped the email after a wrong password until the field was made controlled.
• Keeping the footer at the bottom of short pages without making long ones scroll twice.

Future Improvements

• A Badge: A small version badge any project can show, linking back to its page here.
• Links Both Ways: Each release pointing to the matching section of its note.

Screens & Visuals

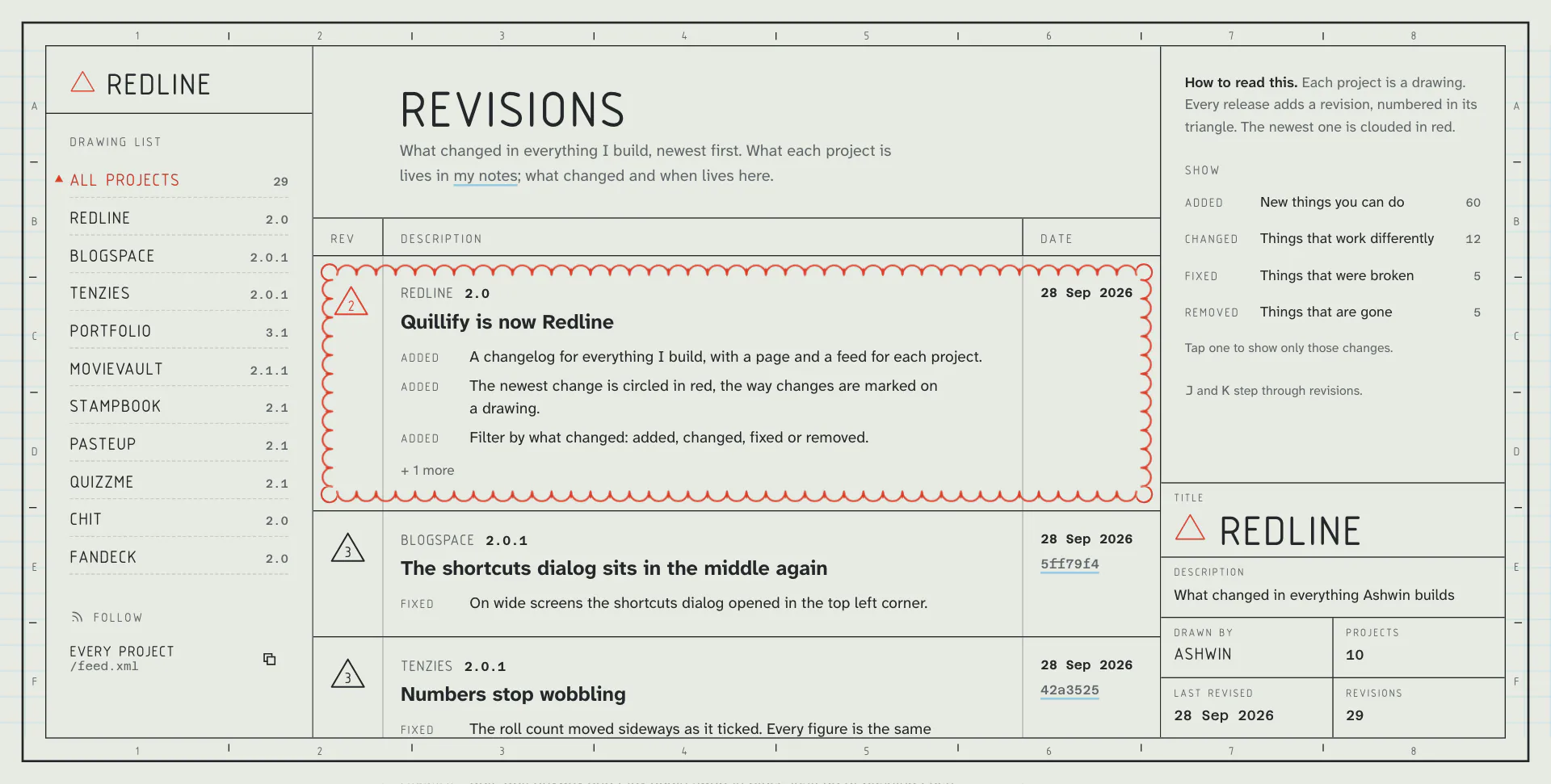

Home

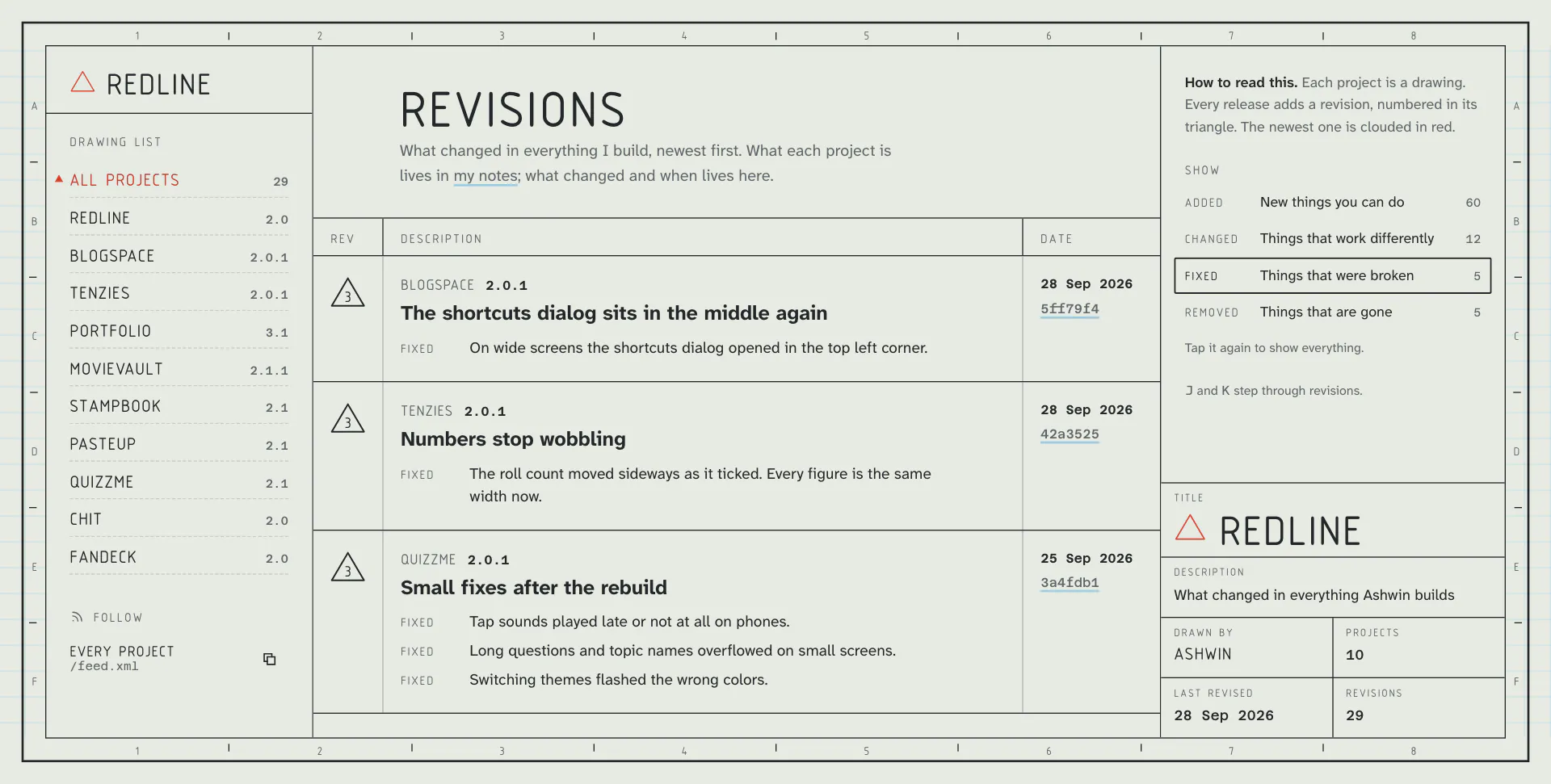

Only Fixes

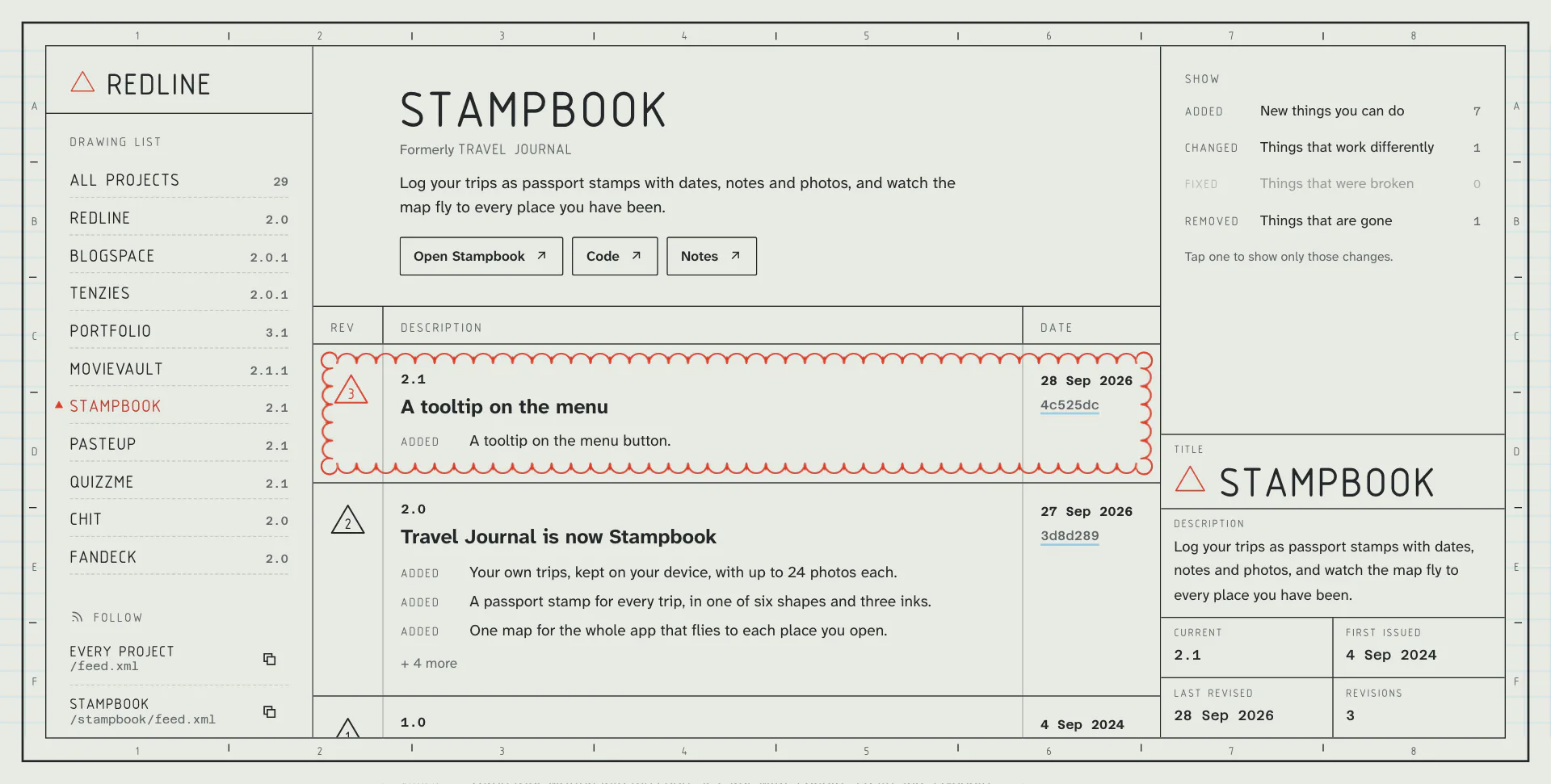

A Drawing

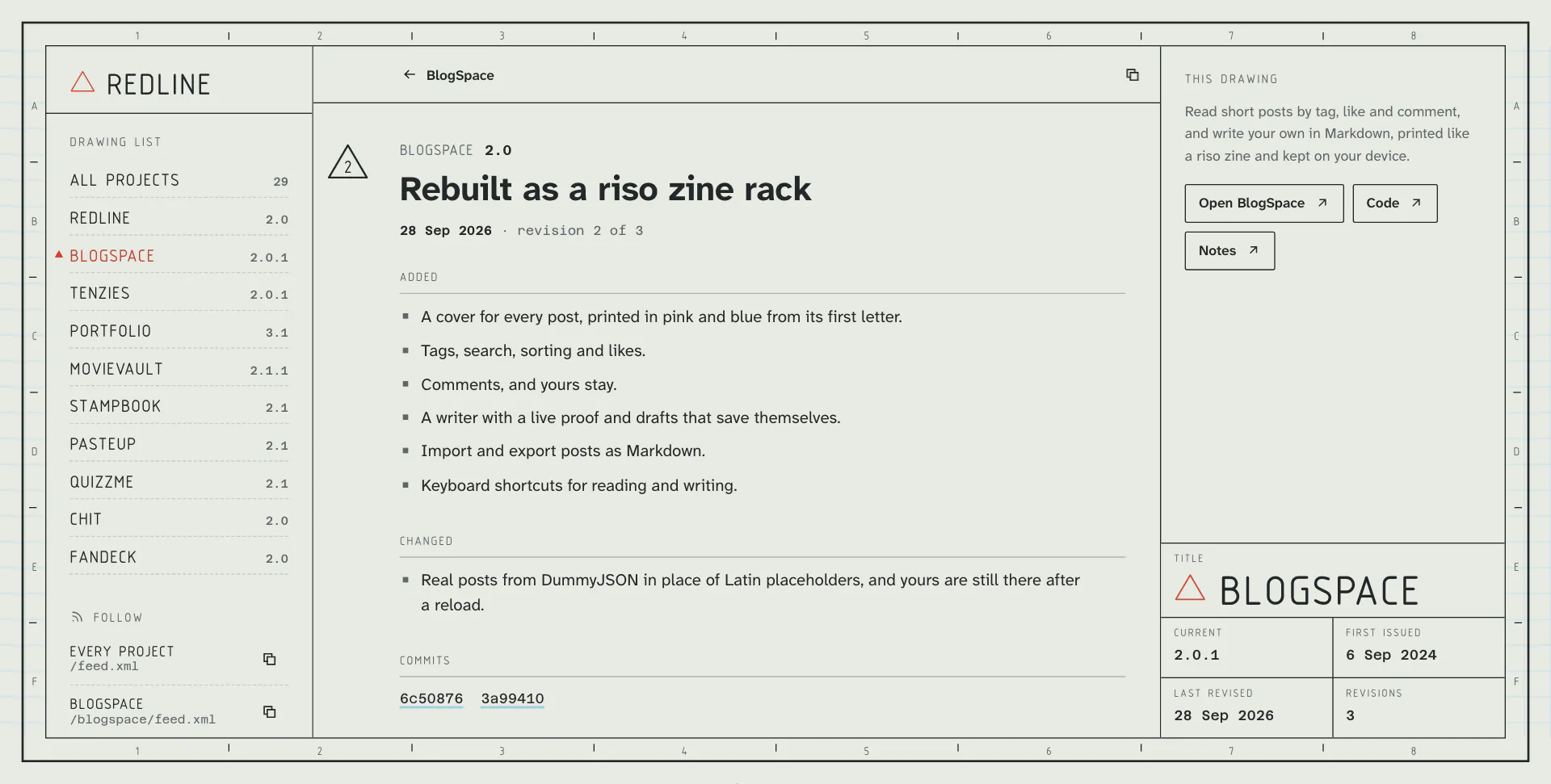

A Revision

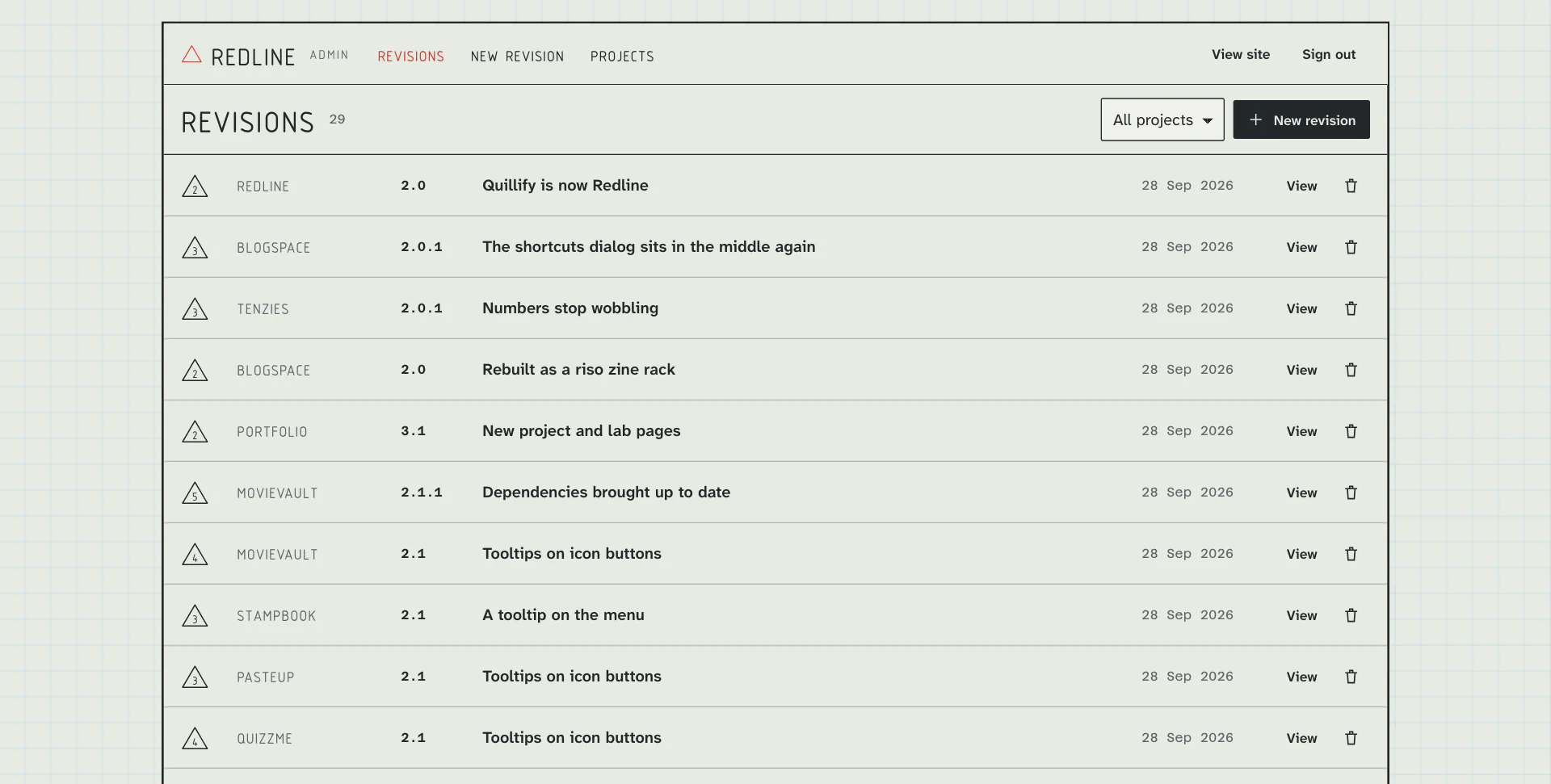

The Admin

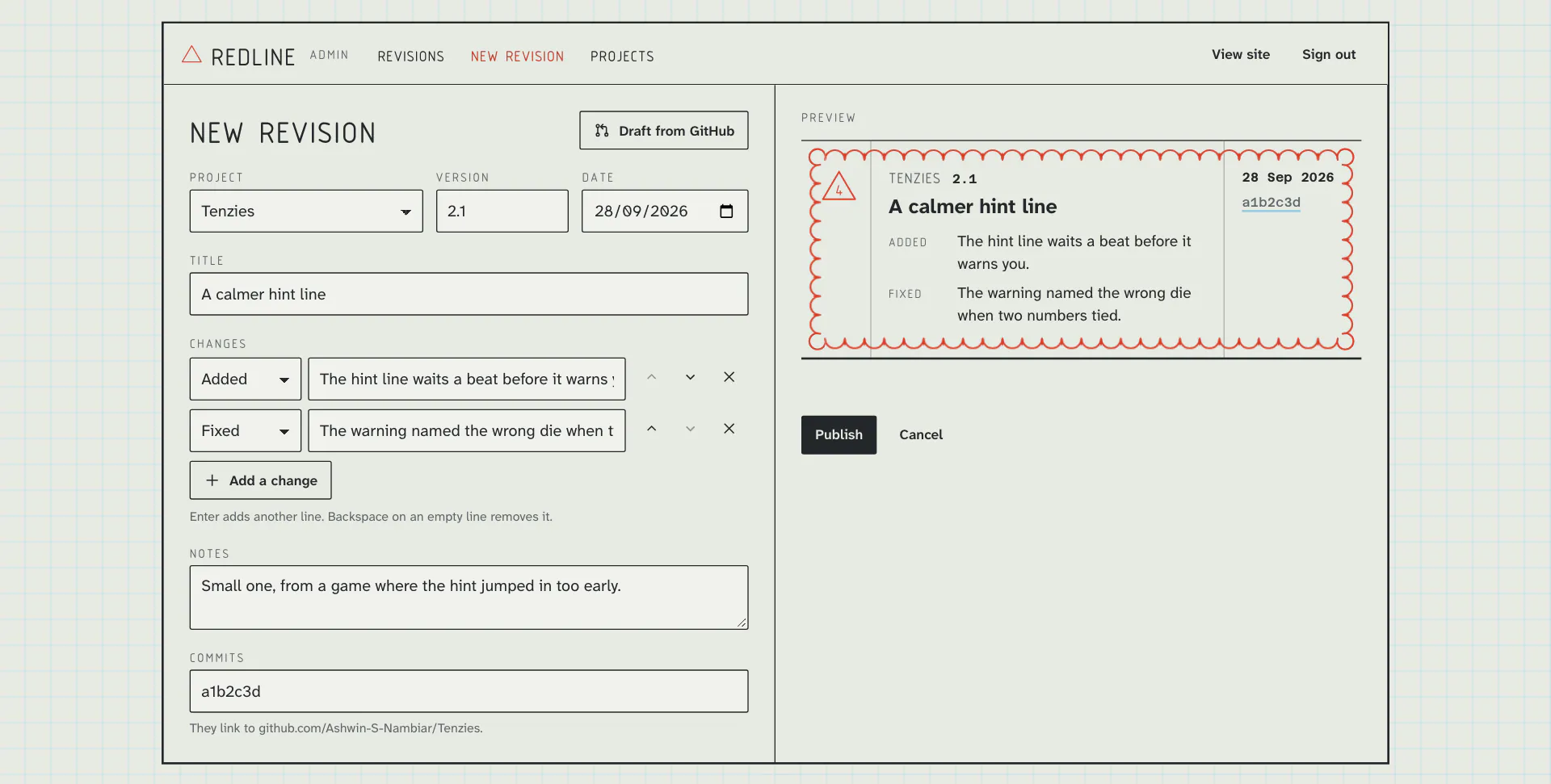

Writing a Revision

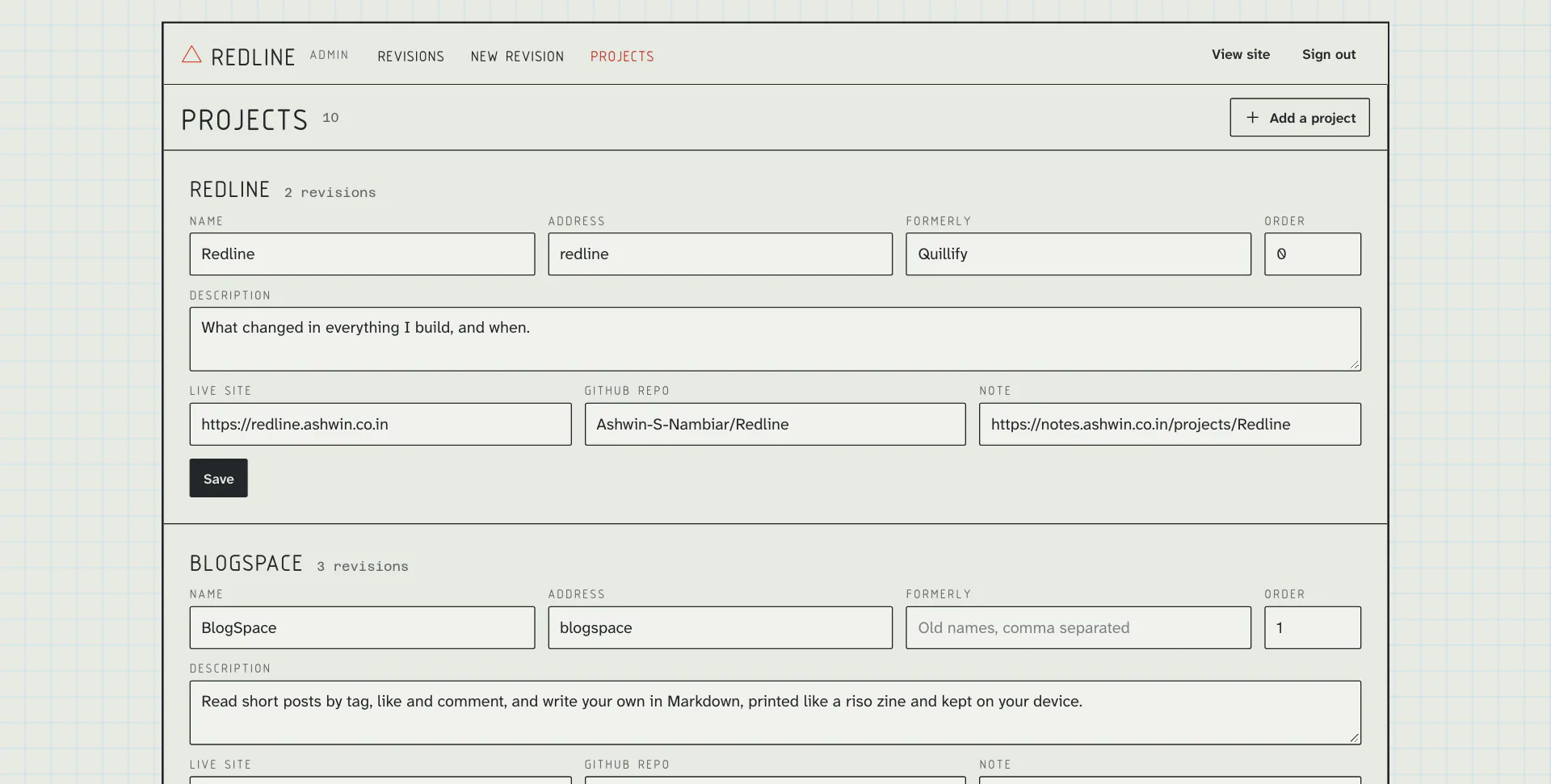

Projects

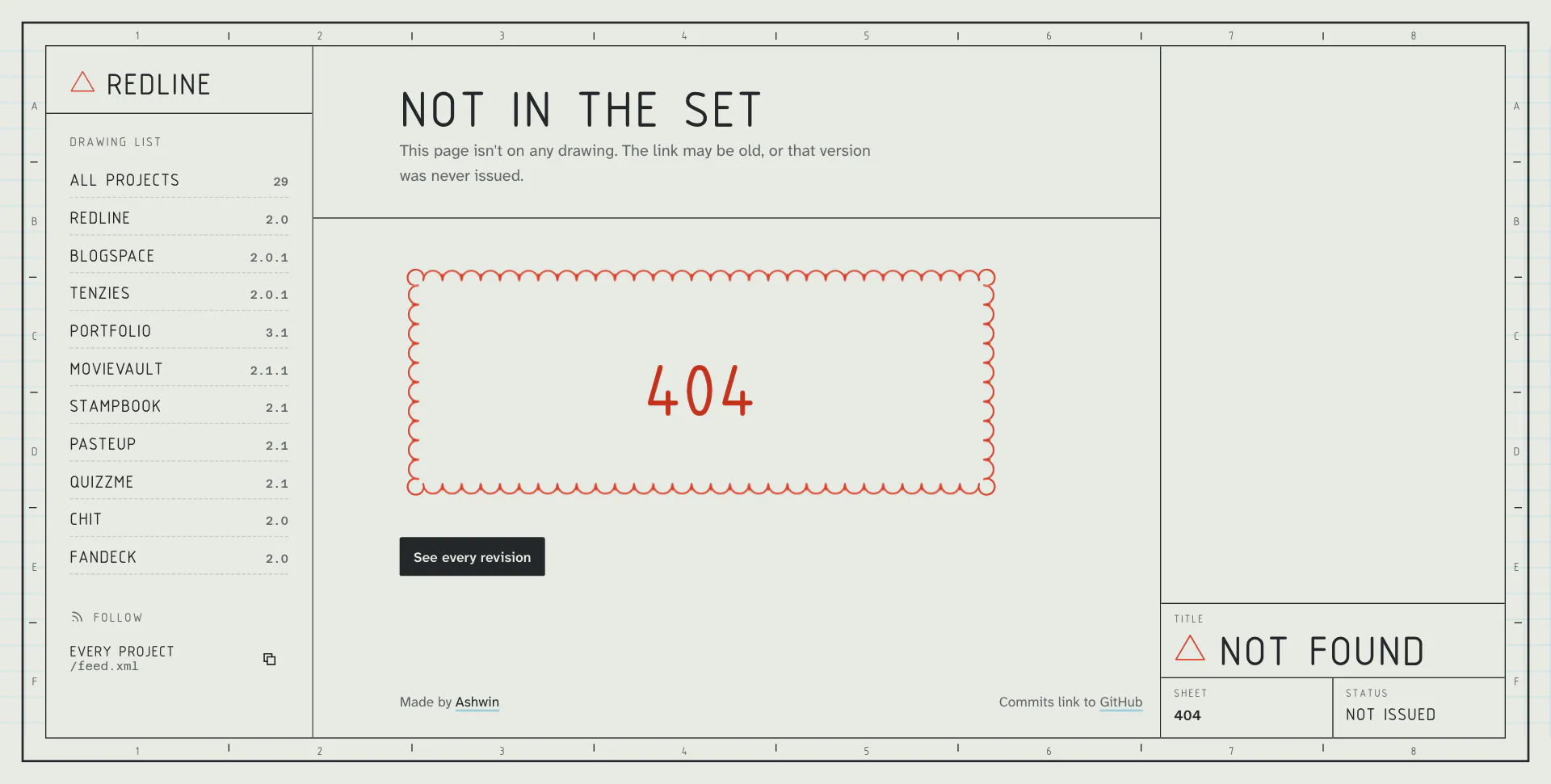

404
